Hiraoka Architectural PVC HG102

Home \ Products \ Shade \ Architectural Fabrics \ Hiraoka Architectural PVC HG102
The HG102 is the backbone of the Hiraoka architectural range. A high-performance, PVC-coated polyester membrane that has earned its reputation as the standard-setter for medium-to large-scale architectural structures across Australia and around the world. The HG102 is engineered for balance, with its PVDF Finish/PVC-over-polyester construction delivering exceptional combination of structural strength, controlled light transmission, and long-term weather resistance, without compromise. Whether specified for a commercial canopy or a large tensile structure, the HG102 performs consistently across the full range of Australian climate conditions, from coastal humidity to arid heat. The PVDF surface treatment provides superior resistance to dirt accumulation and UV degradation, keeping the membrane looking and performing at its best with minimal maintenance, a critical consideration for large-scale installations where cleaning access is limited. With a temperature tolerance of −40°C to +70°C, the HG102 is at home in alpine environments and in the intensity of a Queensland summer. It meets EN13501-1 B-s2,d0 fire classification and satisfies both NFPA-701 and ASTM E-84 flame spread standards.

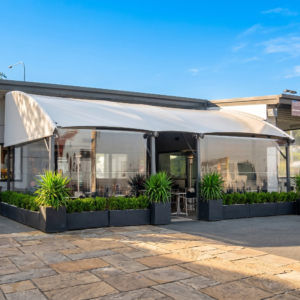

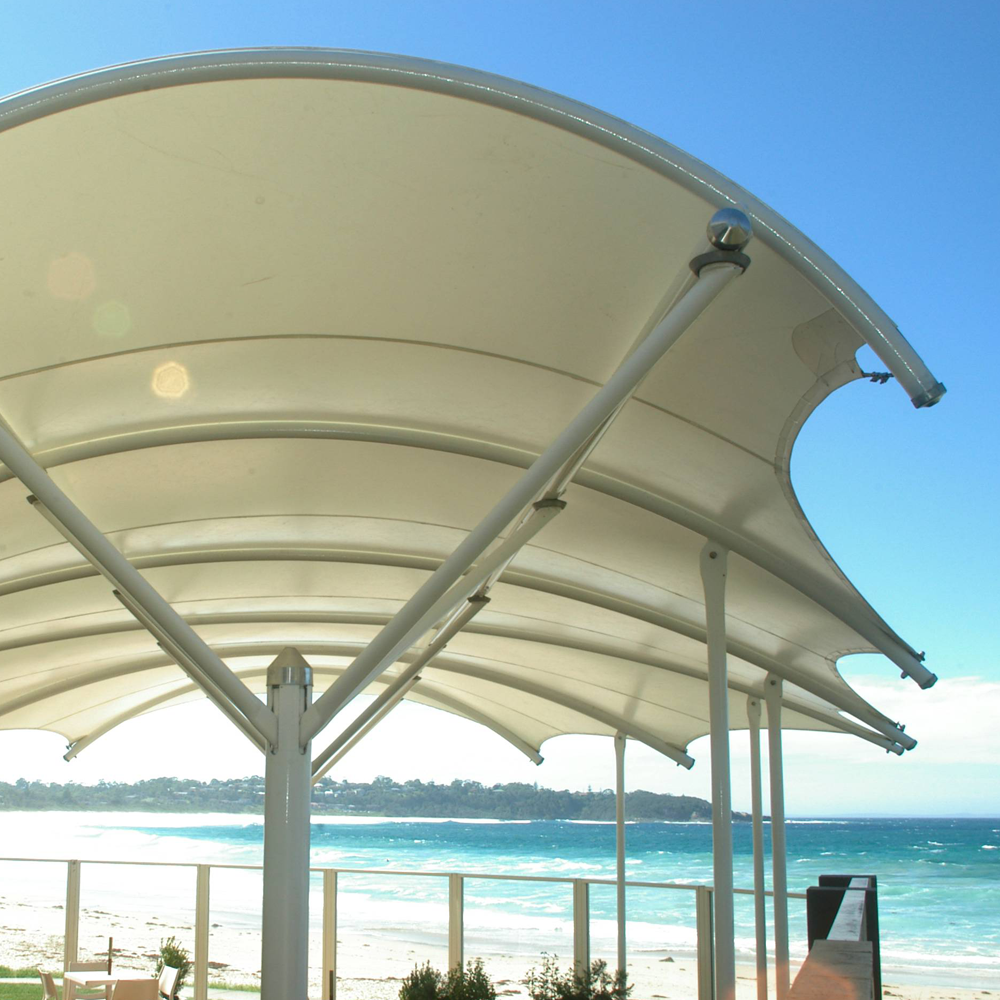

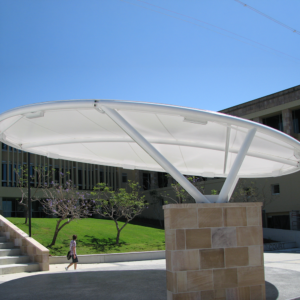

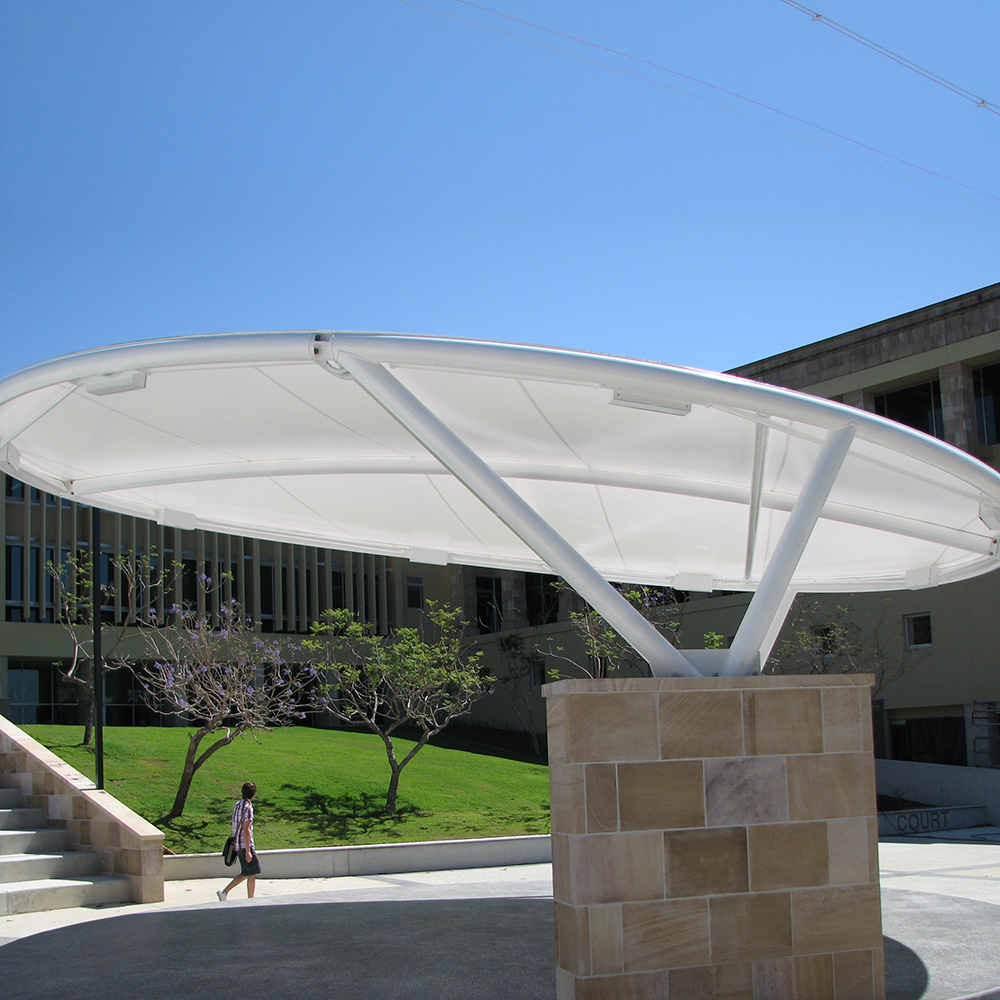

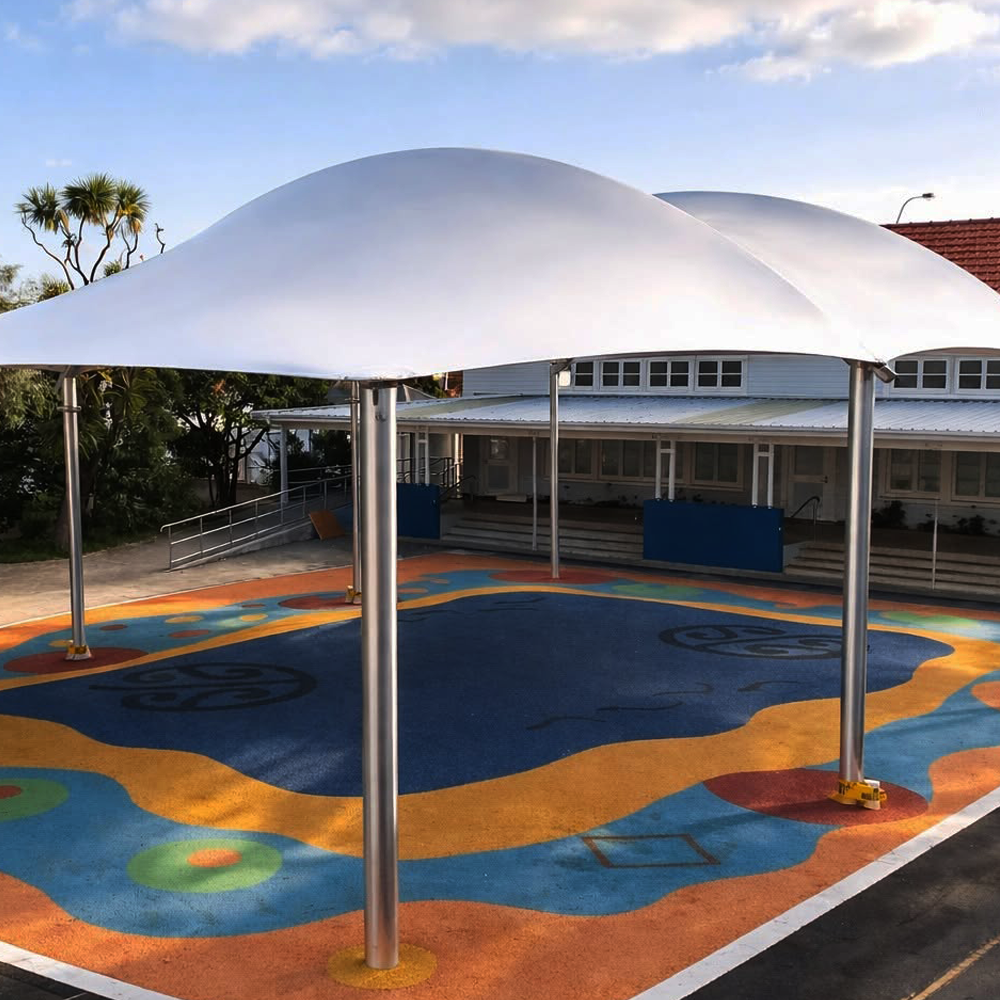

Product Gallery

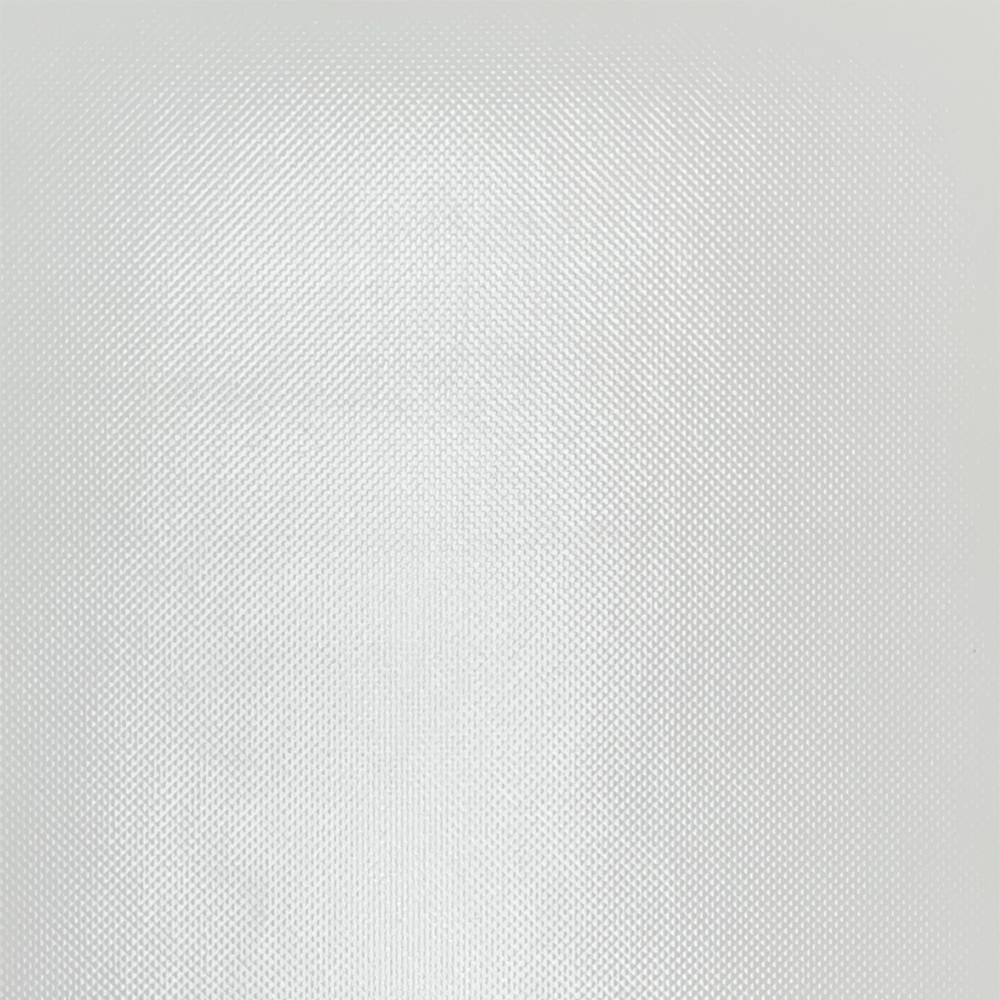

Colour Swatches
Features and Benefits
  • Temperature Resistant
  • Flame Retardant
  • Controlled Light Transmission
  • UV Stabilised
  • Meets Global Fire Safety Standards: EN13501-1, NFPA-701, ASTM E-84
  • 20-Year Warranty
Application
Medium to large-scale architectural structures & exterior membranes.
Technical Specifications
  • Material: Polyester with PVC Coating and PVDF Finish
  • Width: 2.04 M
  • Total Mass: 770 GSM
  • Thickness: 0.63 MM

Need more information about Hiraoka Architectural PVC HG102? Get in contact with our friendly team today..

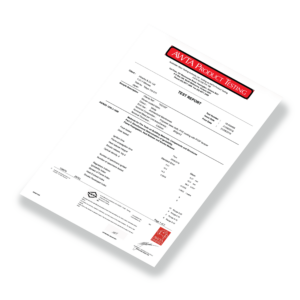

Hiraoka HG102 AS1530.3

PDF | 93.25 KB

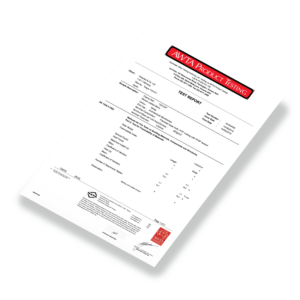

Hiraoka HG102 AS1530.2

PDF | 91.62 KB

FAQs

How does the Hiraoka HG102 differ from the 106T, HG102 SHS and HG212?

Specification106THG102HG102 SHSHG212
CONSTRUCTION
Base fabricPolyesterPolyesterPolyesterPolyester
Surface coatingPVDF / AcrylicPVDF / PVCPVDF / PVCPVDF / PVC
Width (mm)2040204020402040
Roll length (m)50
PHYSICAL PROPERTIES
Total mass (gsm)725770770950
Thickness (mm)0.570.630.630.75
MECHANICAL STRENGTH
Tensile strength — warp (N/5cm)3850310031005100
Tensile strength — weft (N/5cm)3650280028005200
Tear strength — warp, DIN (N)450300300630
Tear strength — weft, DIN (N)435300300630
Coating adhesion (N/5cm)100100100130
OPTICAL & THERMAL PERFORMANCE
Light transmission (%)9% (white)12%2.7%11%
Infrared reflectance (%)85%+
Temperature resistance (°C)-40 / +70-40 / +70-40 / +70
FIRE & SAFETY COMPLIANCE
AS1530.2 / AS1530.3 (Australia)✓ Yes
EN13501-1B-s2,d0B-s2,d0B-s2,d0
NFPA-701✓ Meet✓ Meet✓ Meet
ASTM E-84✓ Meet✓ Meet✓ Meet
DURABILITY & TREATMENT
UV resistance✓ Yes✓ Yes✓ Yes✓ Yes
Fungal resistance✓ Treated
Anti-wicking✓ Yes
REACH compliant✓ Yes
Easy to weld✓ Yes✓ Yes
WARRANTY & RECOMMENDED USE
Warranty10-yr pro rata20-yr20-yrEnquire
Ideal structure sizeSmall–mediumMedium–largeMedium–largeLarge
Available coloursWhite, Light Grey, Dark Grey, Cream, Putty, SandEnquireEnquireEnquire

What scale of projects is the HG102 designed for?
The HG102 is engineered specifically for medium- to-large scale architectural structures, such as commercial canopies, and large tensile installations.

How does the HG102 handle extreme Australian weather conditions?
It is built for consistent, all-climate performance. With a temperature tolerance ranging from −40°C to +70°C, it reliably withstands everything from coastal humidity and alpine environments to intense Queensland heat.

Is the HG102 difficult to clean and maintain?
No, it is designed specifically for low maintenance. The PVDF surface treatment provides superior resistance to dirt accumulation and UV degradation, which keeps the membrane looking and performing at its best – a crucial feature for large structures where cleaning access is difficult.

Does the HG102 comply with Australian fire safety regulations?
Yes. The HG102 satisfies the EN13501-1 B-s2,d0 fire classification and satisfies both NFPA-701 and ASTM E-84 flame spread standards.
