Hiraoka Architectural PVC HG212
Features and Benefits
- Temperature Resistant
- Dirt-Resistant PVDF Surface
- UV Stabilised
- Controlled Light Transmission
- Excellent Fire Retardant Properties: EN13501-1, NFPA-701, ASTM E-84
- Flame Retardant
Application
Technical Specifications
- Material: Polyester with PVC Coating and PVDF Finish
- Width: 2.04 M
- Total Mass: 950 GSM
- Thickness: 0.75 MM

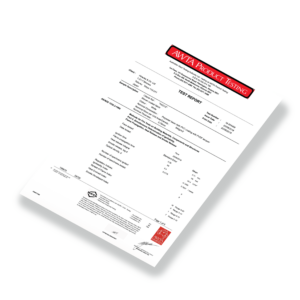

Hiraoka HG212 AS1530.3
PDF | 92.8 KB

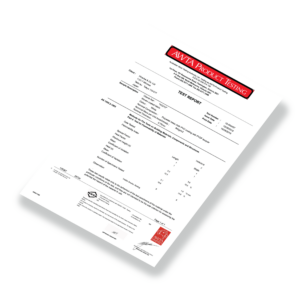

Hiraoka HG 212 AS1530.2
PDF | 88.92 KB
FAQs
How does the Hiraoka HG212 differ from the 106T, HG102, and HG102 SHS?
| Specification | 106T | HG102 | HG102 SHS | HG212 |
|---|---|---|---|---|
| CONSTRUCTION | ||||
| Base fabric | Polyester | Polyester | Polyester | Polyester |
| Surface coating | PVDF / Acrylic | PVDF / PVC | PVDF / PVC | PVDF / PVC |
| Width (mm) | 2040 | 2040 | 2040 | 2040 |
| Roll length (m) | 50 | — | — | — |
| PHYSICAL PROPERTIES | ||||
| Total mass (gsm) | 725 | 770 | 770 | 950 |
| Thickness (mm) | 0.57 | 0.63 | 0.63 | 0.75 |
| MECHANICAL STRENGTH | ||||
| Tensile strength — warp (N/5cm) | 3850 | 3100 | 3100 | 5100 |
| Tensile strength — weft (N/5cm) | 3650 | 2800 | 2800 | 5200 |
| Tear strength — warp, DIN (N) | 450 | 300 | 300 | 630 |
| Tear strength — weft, DIN (N) | 435 | 300 | 300 | 630 |
| Coating adhesion (N/5cm) | 100 | 100 | 100 | 130 |
| OPTICAL & THERMAL PERFORMANCE | ||||
| Light transmission (%) | 9% (white) | 12% | 2.7% | 11% |
| Infrared reflectance (%) | — | — | 85%+ | — |
| Temperature resistance (°C) | — | -40 / +70 | -40 / +70 | -40 / +70 |
| FIRE & SAFETY COMPLIANCE | ||||
| AS1530.2 / AS1530.3 (Australia) | ✓ Yes | — | — | — |
| EN13501-1 | — | B-s2,d0 | B-s2,d0 | B-s2,d0 |
| NFPA-701 | — | ✓ Meet | ✓ Meet | ✓ Meet |
| ASTM E-84 | — | ✓ Meet | ✓ Meet | ✓ Meet |
| DURABILITY & TREATMENT | ||||
| UV resistance | ✓ Yes | ✓ Yes | ✓ Yes | ✓ Yes |
| Fungal resistance | ✓ Treated | — | — | — |
| Anti-wicking | ✓ Yes | — | — | — |
| REACH compliant | — | — | — | ✓ Yes |
| Easy to weld | — | — | ✓ Yes | ✓ Yes |
| WARRANTY & RECOMMENDED USE | ||||
| Warranty | 10-yr pro rata | 20-yr | 20-yr | Enquire |
| Ideal structure size | Small–medium | Medium–large | Medium–large | Large |
| Available colours | White, Light Grey, Dark Grey, Cream, Putty, Sand | Enquire | Enquire | Enquire |
When should I specify the HG212 over the HG102?
The HG212 should be specified when your project demands greater span, higher load capacity, stronger seams, or stricter environmental compliance. It is purpose-built for larger, more demanding applications where standard fabrics reach their limits.
Will a fabric this heavy make the space underneath feel dark?
Not at all. Despite its heavy-duty 950 gsm weight and high strength, the HG212 remains translucent, allowing 11% of natural light to pass through. This creates bright, welcoming, and visually open spaces underneath.
Is the HG212 suitable for high-wind or coastal locations?
Yes. With warp and weft tensile strength exceeding 5,100 N/5cm, the HG212 offers exceptional tensile and tear strength, making it ideal for highly exposed tensile structures and high-wind coastal zones.
What makes the HG212 suitable for government or institutional projects?
In addition to offering excellent fire retardant properties, the HG212 is fully REACH compliant. This strict environmental certification makes it ideal for major infrastructure, institutional, and government projects with rigorous eco-specifications.
How reliable is the fabrication and seam strength for large panels?
Fabrication is clean and highly reliable. The HG212 is engineered to weld consistently without compromising its protective coating integrity, ensuring high-strength, dependable seams across large panel formats.
